Description

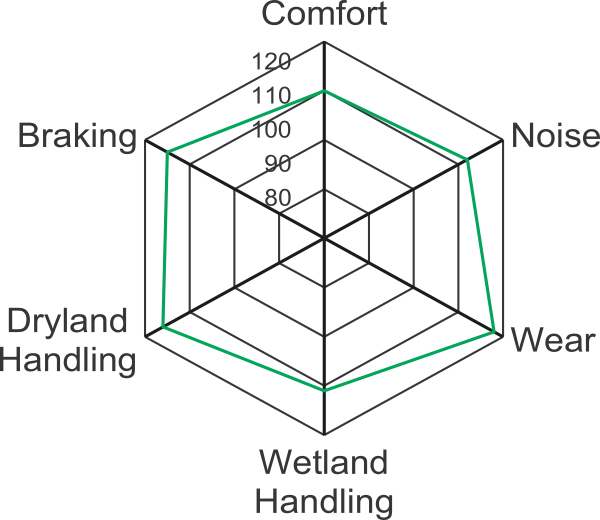

AKITA K90 Pattern Feature Chart
Available Sizes for AKITA K90
| SIZE | LI/SS | TREAD DEPTH (MM) | STD RIM | OVERALL DIAMETER (MM) | SECTION WODTH (MM) | MAX LOAD (KG) | INFLATED PRESSURE (KPA) |
|---|---|---|---|---|---|---|---|
| 145R10C | 84/82N | 6.2 | 4.00B | 492 | 147 | 500/475 | 450 |
| 195/55R10C | 98/96P | 6.5 | 6.00B | 468 | 201 | 750/710 | 625 |
| 155/70R12C | 104/102N | 6.0 | 4.50B | 523 | 157 | 900/850 | 650 |
| 185/60R12C | 104/101N | 6.5 | 5½J | 527 | 189 | 900/825 | 650 |
| 195/60R12C | 104/102N | 6.5 | 6J | 536 | 201 | 900/850 | 650 |
| 195/60R12C | 108/106N | 6.5 | 6J | 536 | 201 | 1000/950 | 650 |
| 225/55R12C 10PR | 112N | 6.5 | 7J | 553 | 233 | 1120 | 690 |
| 135/80R13 | 74N | 5.0 | 3.50B | 546 | 133 | 375 | 340 |
| 145/70R13 | 79N | 6.0 | 4.50B | 534 | 150 | 437 | 340 |
| 145/80R13 | 79N | 6.0 | 4.00B | 562 | 145 | 437 | 340 |
| 155/70R13 | 79N | 6.0 | 4.50B | 548 | 157 | 437 | 340 |
| 155/80R13 | 79T | 6.0 | 4.50B | 578 | 157 | 437 | 300 |
| 155/80R13 | 84N | 6.0 | 4.50B | 578 | 157 | 500 | 340 |
| 165/70R13 | 84N | 6.0 | 5.00B | 562 | 170 | 500 | 340 |
| 165/80R13 | 84N | 6.0 | 4.50B | 594 | 165 | 500 | 340 |
| 175/70R13 | 86N | 6.0 | 5.00B | 576 | 177 | 530 | 340 |
| 185/70R13C | 106/104N | 6.5 | 5.50B | 590 | 189 | 950/900 | 600 |
| 185/70R13C | 108/106N | 6.5 | 5.50B | 590 | 189 | 1000/950 | 600 |
| 195/50R13C | 104/101N | 6.5 | 6.00B | 526 | 201 | 900/825 | 650 |
| 185/65R14 | 93N | 6.5 | 5½J | 596 | 189 | 650 | 340 |
| 195/65R14 | 96N | 6.5 | 6J | 610 | 201 | 710 | 340 |
| 195/70R14 | 96N | 6.5 | 6J | 630 | 201 | 710 | 340 |
| 185/65R15 | 93N | 6.5 | 5½J | 621 | 189 | 650 | 340 |
| 195/65R15 | 95N | 6.5 | 6J | 635 | 201 | 690 | 340 |
| 195/65R15 | 98N | 6.5 | 6J | 635 | 201 | 750 | 340 |
| 125/80R17 | 71Q | 8.0 | 3½J | 632 | 126 | 345 | 300 |
