Description

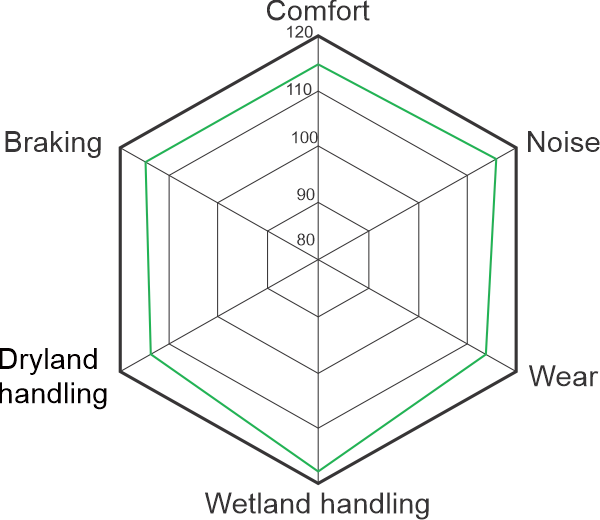

AKITA K9 Pattern Feature Chart
Available Sizes for AKITA K9
| SIZE | LI/SS | TREAD DEPTH (MM) | STD RIM | OVERALL DIAMETER (MM) | SECTION WODTH (MM) | MAX LOAD (KG) | INFLATED PRESSURE (KPA) |
|---|---|---|---|---|---|---|---|
| 205/70R15 | 96T | 8.1 | 6J | 669 | 209 | 710 | 300 |
| 215/70R16 | 100H | 8.5 | 6½J | 708 | 221 | 800 | 300 |
| 225/70R16 | 103H | 8.0 | 6½J | 722 | 228 | 875 | 300 |
| 235/70R16 | 106H | 8.3 | 7J | 736 | 240 | 950 | 300 |
| 245/70R16 | 107H | 8.1 | 7J | 750 | 248 | 975 | 300 |
| 265/70R16 | 112H/T | 8.5 | 8J | 778 | 272 | 1120 | 300 |
| 275/70R16 | 114H/T | 8.5 | 8J | 792 | 279 | 1180 | 300 |
| 215/60R17 | 96H | 8.5 | 6½J | 690 | 221 | 710 | 300 |
| 215/65R17 | 99H | 8.1 | 6½J | 712 | 221 | 775 | 300 |
| 225/60R17 | 99H | 8.5 | 6½J | 702 | 228 | 775 | 300 |
| 225/65R17 | 102H | 8.5 | 6½J | 724 | 228 | 850 | 300 |
| 235/65R17 | 104H | 8.5 | 7J | 738 | 240 | 900 | 300 |
| 245/65R17 | 107H | 8.5 | 7J | 750 | 248 | 975 | 300 |
| 245/70R17 | 110T | 8.1 | 7J | 776 | 248 | 1060 | 300 |
| 265/65R17 | 112H | 8.3 | 8J | 776 | 272 | 1120 | 300 |
| 265/70R17 | 115H/T | 8.5 | 8J | 804 | 272 | 1215 | 300 |
| 225/55R18 | 98V | 8.1 | 7J | 705 | 233 | 750 | 300 |
| 225/60R18 | 100V | 8.1 | 6½J | 727 | 228 | 800 | 300 |
| 235/55R18 | 104V XL | 8.1 | 7½J | 715 | 245 | 900 | 340 |
| 235/60R18 | 107V XL | 8.3 | 7J | 739 | 240 | 975 | 340 |
| 245/60R18 | 105H | 8.3 | 7J | 751 | 248 | 925 | 300 |
| 255/70R18 | 113H | 8.3 | 7½J | 815 | 260 | 1150 | 300 |
| 265/60R18 | 110H | 8.3 | 8J | 775 | 272 | 1060 | 300 |
| 265/70R18 | 116T | 8.1 | 8J | 829 | 272 | 1250 | 300 |
| 275/70R18 | 116T | 8.1 | 8J | 843 | 279 | 1250 | 300 |
