Description

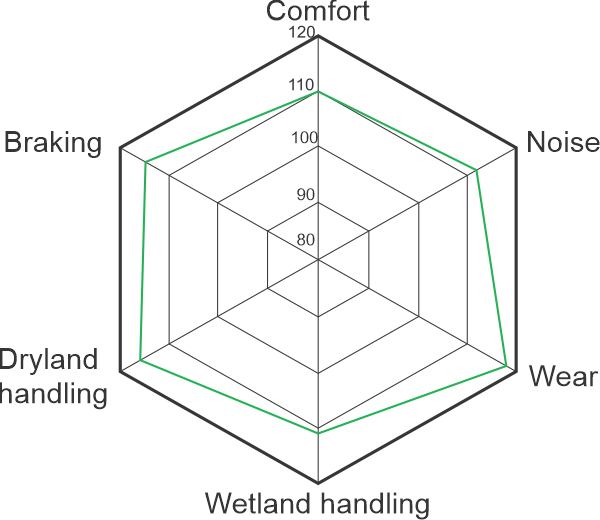

AKITA 81 Pattern Feature Chart
Available Sizes for AKITA K81
| SIZE | LI/SS | TREAD DEPTH (MM) | STD RIM | OVERALL DIAMETER (MM) | SECTION WODTH (MM) | MAX LOAD (KG) | INFLATED PRESSURE (KPA) |
|---|---|---|---|---|---|---|---|
| 5.00R12 LT 8PR | 83/81Q | 7.8 | 3.50B | 568 | 143 | 487/462 | 450 |
| 5.00R12 C 8PR | 83/81Q | 7.8 | 3.50B | 568 | 143 | 487/462 | 450 |
| 5.00R12 LT 10PR | 88/86Q | 7.8 | 3.50B | 568 | 143 | 560/530 | 500 |
| 5.00R12 C 10PR | 88/86Q | 7.8 | 3.50B | 568 | 143 | 560/530 | 500 |
| 5.50R13LT 8PR | 88/84P | 7.8 | 4.00B | 620 | 160 | 560/500 | 460 |
| 5.50R13C 8PR | 88/84P | 7.8 | 4.00B | 620 | 160 | 560/500 | 460 |
