Description

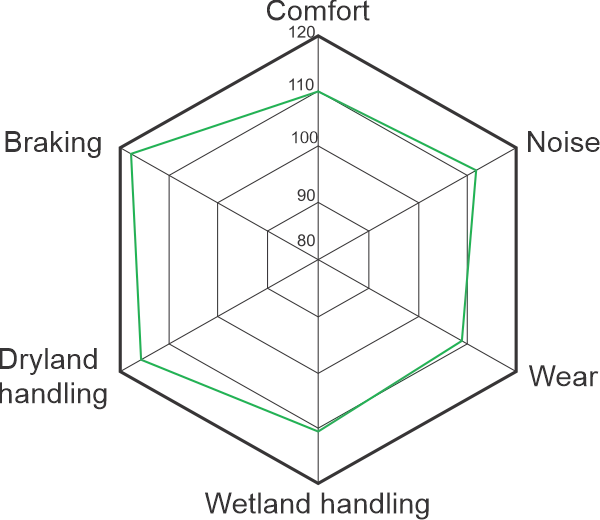

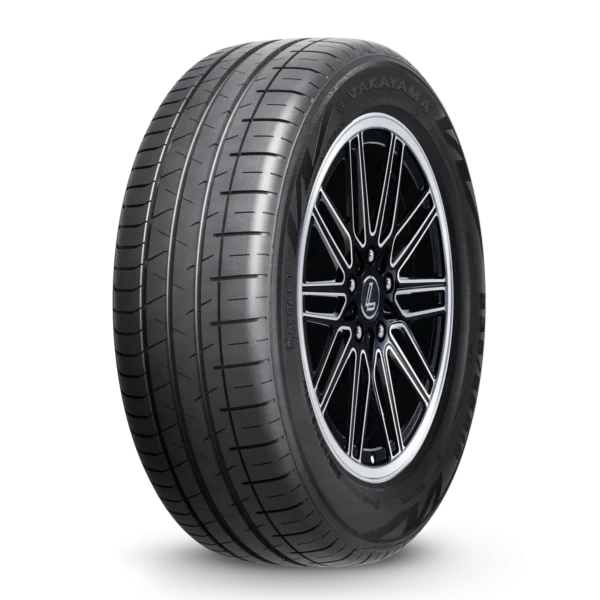

AKITA K13 Pattern Feature Chart
Available Sizes for AKITA K13
| SIZE | LI/SS | TREAD DEPTH (MM) | STD RIM | OVERALL DIAMETER (MM) | SECTION WODTH (MM) | MAX LOAD (KG) | INFLATED PRESSURE (KPA) |
|---|---|---|---|---|---|---|---|
| 205/45R16 | 87V XL | 7.4 | 7J | 590 | 206 | 545 | 340 |
| 205/50ZR17 | 93W XL | 7.4 | 6½J | 638 | 214 | 650 | 340 |
| 205/55ZR17 | 95W XL | 7.4 | 6½J | 658 | 214 | 690 | 340 |
| 235/55ZR17 | 103W XL | 7.4 | 7½J | 690 | 245 | 875 | 340 |
| 215/55R18 | 95W | 7.4 | 7J | 693 | 226 | 690 | 300 |
| 225/40ZR18 | 92W XL | 7.4 | 8J | 637 | 230 | 630 | 340 |
| 225/50ZR18 | 99W XL | 7.4 | 7J | 683 | 233 | 775 | 340 |
| 235/45ZR18 | 94W | 7.4 | 8J | 669 | 236 | 670 | 300 |
| 235/45ZR18 | 98W XL | 7.4 | 8J | 669 | 236 | 750 | 340 |
| 235/50ZR18 | 101W XL | 7.4 | 7½J | 693 | 245 | 825 | 340 |
| 245/50ZR18 | 104W XL | 7.4 | 7½J | 703 | 253 | 900 | 340 |
| 225/45ZR19 | 96W XL | 7.4 | 7½J | 685 | 225 | 710 | 340 |
| 225/55ZR19 | 103W XL | 7.4 | 7J | 731 | 233 | 875 | 340 |
| 235/55R19 | 101W | 7.4 | 7½J | 741 | 245 | 825 | 300 |
| 245/40ZR19 | 98W XL | 7.4 | 8½J | 679 | 248 | 750 | 340 |
| 245/45ZR19 | 102W XL | 7.4 | 8J | 703 | 243 | 850 | 340 |
| 245/55ZR19 | 107W XL | 7.4 | 7½J | 753 | 253 | 975 | 340 |
| 245/45ZR20 | 103W XL | 7.4 | 8J | 728 | 243 | 875 | 340 |
| 245/40ZR20 | 99W XL | 7.4 | 8½J | 704 | 248 | 775 | 340 |
| 245/50ZR20 | 105W XL | 7.4 | 7½J | 754 | 253 | 925 | 340 |
