Description

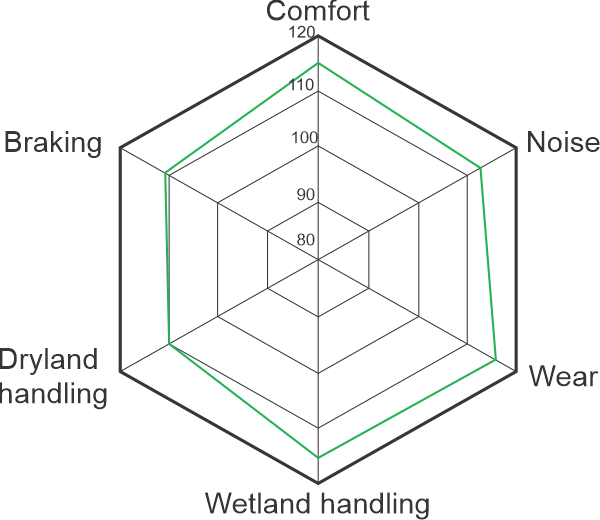

AKITA K12 Pattern Feature Chart
Available Sizes for AKITA K12
| SIZE | LI/SS | TREAD DEPTH (MM) | STD RIM | OVERALL DIAMETER (MM) | SECTION WODTH (MM) | MAX LOAD (KG) | INFLATED PRESSURE (KPA) |
|---|---|---|---|---|---|---|---|
| 155/70R12 | 73T | 7.4 | 4.50B | 523 | 157 | 365 | 250 |
| 165/70R12 | 77T | 7.5 | 5.00B | 537 | 170 | 412 | 250 |
| 135/80R13 | 60L | 5 | 4.00B | 546 | 138 | 250 | 240 |
| 135/80R13 | 74N XL | 5 | 4.00B | 546 | 138 | 375 | 340 |
| 145/60R13 | 66N | 5.6 | 4.50B | 504 | 150 | 300 | 300 |
| 145/80R13 | 75T | 6 | 4.00B | 562 | 145 | 387 | 300 |
| 145/80R13 | 79N XL | 6 | 4.00B | 562 | 145 | 437 | 340 |
| 155/65R13 | 73T | 7.3 | 4.50B | 532 | 157 | 365 | 250 |
| 155/70R13 | 75T | 7.5 | 4.50B | 548 | 157 | 387 | 250 |
| 155/80R13 | 79T | 7.8 | 4.50B | 578 | 157 | 437 | 240 |
| 165/55R13 | 70N | 5.5 | 5.00B | 512 | 170 | 335 | 300 |
| 165/65R13 | 77T | 7.8 | 5.00B | 544 | 170 | 412 | 250 |
| 165/70R13 | 79T | 7.6 | 5.00B | 562 | 170 | 437 | 250 |
| 165/70R13LT6PR | 88/86S | 7.6 | 5.00B | 562 | 170 | 560/530 | 375 |
| 165/70R13C6PR | 88/86S | 7.6 | 5.00B | 562 | 170 | 560/530 | 375 |
| 165/80R13 | 83T | 7.7 | 4.50B | 594 | 165 | 487 | 240 |
| 175/70R13 | 82T | 8 | 5.00B | 576 | 177 | 475 | 250 |
| 185/70R13 | 86T | 7.7 | 5.00B | 590 | 189 | 530 | 250 |
| 155/50R14 | 67T | 5.6 | 5J | 512 | 162 | 307 | 300 |
| 165/60R14 | 75H | 7.4 | 5J | 554 | 170 | 387 | 300 |
| 165/65R14 | 79H | 7 | 5J | 570 | 170 | 437 | 300 |
| 165/70R14 | 81T | 7.6 | 5J | 588 | 170 | 462 | 250 |
| 165/80R14 | 85T | 7.3 | 4½J | 620 | 165 | 515 | 300 |
| 175/65R14 | 82H | 7.8 | 5J | 584 | 177 | 475 | 250 |
| 175/70R14 | 84T | 8 | 5J | 602 | 177 | 500 | 250 |
| 175/70R14LT6PR | 95/93Q | 8 | 5J | 602 | 177 | 690/650 | 375 |
| 175/70R14C6PR | 95/93Q | 8 | 5J | 602 | 177 | 690/650 | 375 |
| 185/60R14 | 82H | 7.8 | 5½J | 578 | 189 | 475 | 250 |
| 185/65R14 | 86H | 7.7 | 5½J | 596 | 189 | 530 | 250 |
| 185/70R14 | 88T | 7.8 | 5½J | 616 | 189 | 560 | 250 |
| 195/60R14 | 86H | 7.7 | 6J | 590 | 201 | 530 | 250 |
| 195/70R14 | 91T | 7.7 | 6J | 630 | 201 | 615 | 250 |
| 205/60R14 | 88H | 8 | 6J | 602 | 209 | 560 | 300 |
| 185/60R15 | 84H | 7 | 5½J | 603 | 189 | 500 | 300 |
| 185/65R15 | 88H | 7 | 5½J | 621 | 189 | 560 | 300 |
| 195/50R15 | 82H/V | 7.4 | 6J | 577 | 201 | 475 | 300 |
| 195/55R15 | 85H/V | 7.4 | 6J | 595 | 201 | 515 | 300 |
| 195/60R15 | 88H | 7.2 | 6J | 615 | 201 | 560 | 300 |
| 195/65R15 | 91H | 7.8 | 6J | 635 | 201 | 615 | 250 |
| 205/60R15 | 91H/V | 7.4 | 6J | 627 | 209 | 615 | 300 |
| 205/65R15 | 94H | 8 | 6J | 647 | 209 | 670 | 250 |
| 215/65R15 | 96H | 7.5 | 6½J | 661 | 221 | 710 | 300 |
